CONEKT^® Mobile-Ready Readers & Credentials

With Conekt, the smartphone is the access credential

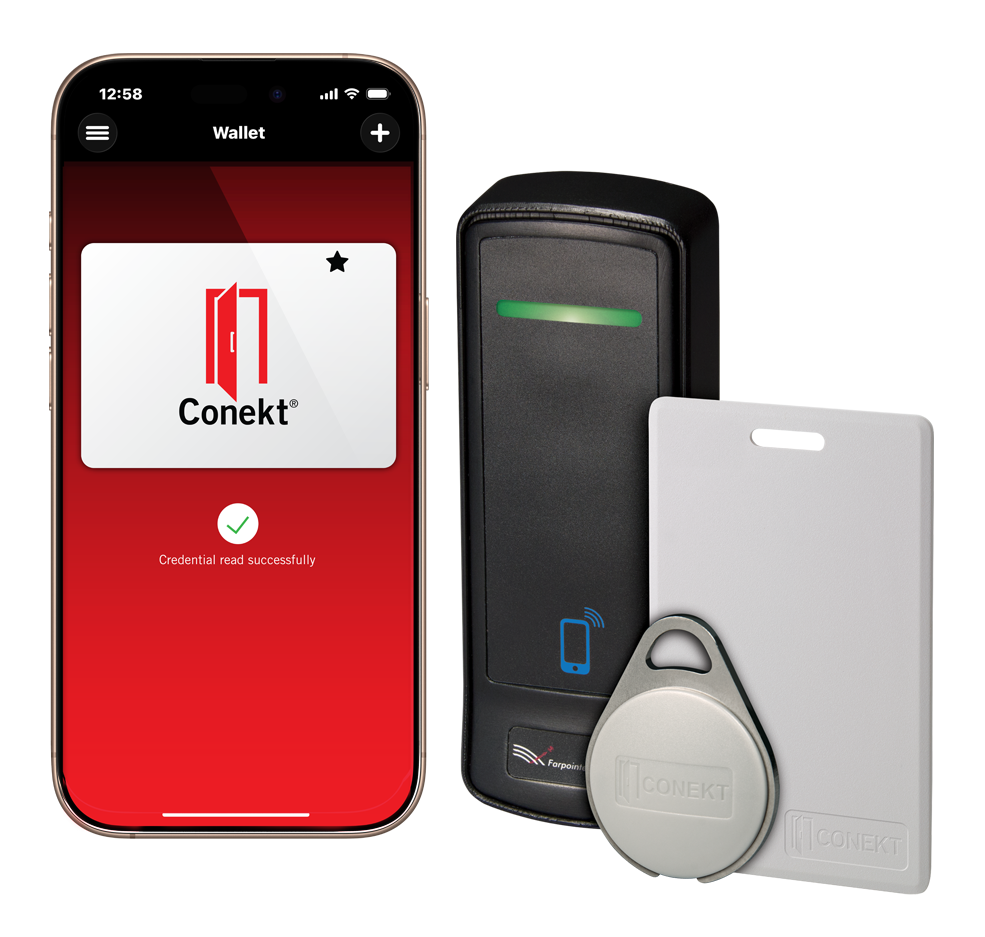

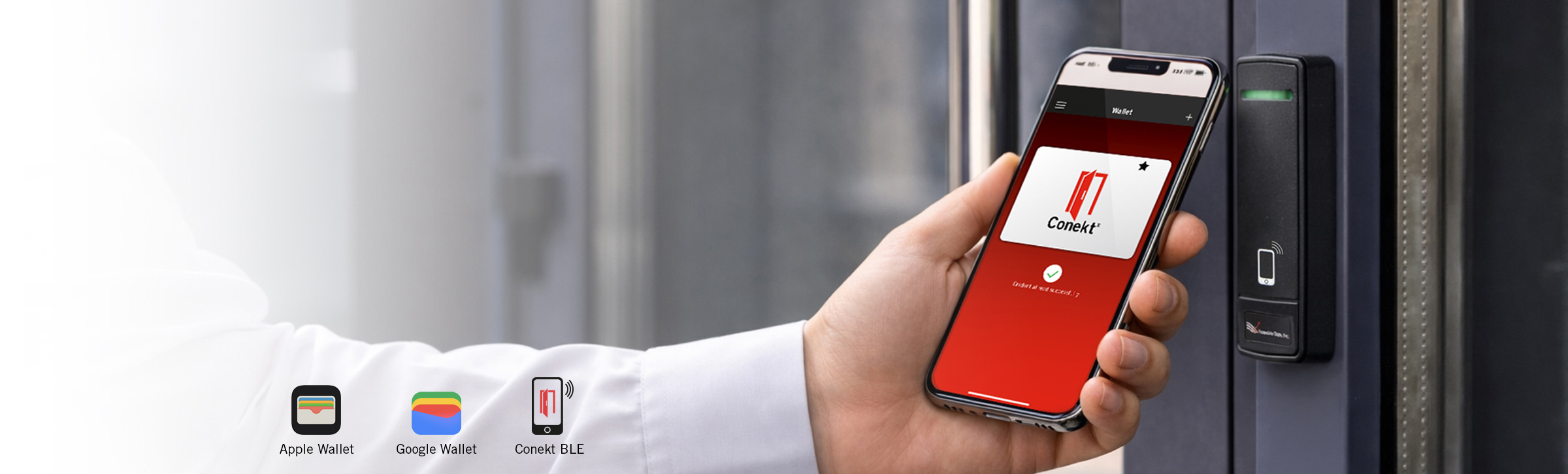

Conekt Mobile Readers & Credentials Conekt is Farpointe Data’s mobile smartphone access control ID solution. In addition to traditional contactless smartcard access credentials, such as clamshell cards and key tags, Conekt also offers the option of mobile access credentials stored in Apple Wallet^®, Google Wallet^®, and the CONEKT App on Bluetooth Low Energy (BLE)-enabled smartphones. Conekt mobile-ready readers include combination Bluetooth Low Energy (BLE)/Near Field Communication (NFC)/contactless smartcard readers, and combination Bluetooth Low Energy (BLE)/proximity readers.

Based upon the proven LEGIC^® contactless digital radio frequency identification (RFID) platform, Conekt readers interface with a wide range of electronic access control systems by complying with either the legacy Wiegand or bi-directional Open Supervised Device Protocol (OSDP).

Featuring easy registration, convenient mobile credentials, and multi-technology readers, Conekt is the next-generation ID solution for your electronic access control systems.

BENEFITS OF CONEKT:

Smartphone wallet app securely stores mobile credentials
One-time registration without disclosure of private information
Cloud-based delivery of mobile credentials
Readers read Conekt BLE and NFC mobile credentials, as well as traditional physical credentials
Flexible enough for small deployments, yet robust enough for enterprise opportunities
Supports industry standard and custom formats
Readers ordered with OSDP support are OSDP Verified by the Security Industry Association (SIA)
Contactless smartcard and proximity reader models available

MOBILE SMARTPHONE CREDENTIALS
	CMC-2 Type: Mobile credential supporting BLE-enabled smartphones Read Range: Up to 15 feet (4.6 m) Download Data Sheet

BLUETOOTH LOW ENERGY (BLE)/NEAR FIELD COMMUNICATION (NFC)/CONTACTLESS SMARTCARD READERS
	CSR-35L Type: Mobile-ready mullion and single-gang wall switch box mount contactless smartcard reader Read Range: Physical Credentials: Up to 1.5 inches (38 mm) Mobile NFC Credentials: Up to 1.5 inches (38 mm) Mobile BLE Credentials: Up to 15 feet (4.6 m) Download Data Sheet
	CSR-6.2L Type: Mobile-ready mullion-mount contactless smartcard reader and keypad Read Range: Physical Credentials: Up to 2 inches (51 mm) Mobile NFC Credentials: Up to 1.5 inches (38 mm) Mobile BLE Credentials: Up to 15 feet (4.6 m) Download Data Sheet
	CSR-6.4L Type: Mobile-ready single-gang wall switch box mount contactless smartcard reader and keypad Read Range: Physical Credentials: Up to 2 inches (51 mm) Mobile NFC Credentials: Up to 1.5 inches (38 mm) Mobile BLE Credentials: Up to 15 feet (4.6 m) Download Data Sheet

CONTACTLESS SMARTCARDS & TAGS
	CSC-2 Type: ISO14443-compliant, clamshell-style, printable. 2K memory standard; other memory sizes available Read Range: Up to 2.25 inches (57 mm) Download Data Sheet
	CSM-2P Type: ISO14443-compliant, ISO-style composite card. 2K memory standard; other memory sizes available Read Range: Up to 2.25 inches (57 mm) Download Data Sheet
	CSM-2S Type: ISO14443-compliant, ISO-style composite card with magnetic stripe. 2K memory standard; other memory sizes available Read Range: Up to 2.25 inches (57 mm) Download Data Sheet
	DE2-125 Type: MIFARE® DESFire® EV2/EV3 contactless smartcard + proximity 125-kHz, printable. 2K EEPROM with fast programming Read Range: Up to 2.5 inches (64 mm) Download Data Sheet
	CSK-2 Type: ISO14443-compliant, keyfob. 2K memory standard; other memory sizes available Read Range: Up to 1 inch (25 mm) Download Data Sheet

BLUETOOTH LOW ENERGY (BLE)/PROXIMITY READERS
	PCR-35L Type: Mobile-ready mullion and single-gang wall switch box mount proximity reader Read Range: Physical Credentials: Up to 4 inches (102 mm) Mobile Credentials: Up to 15 feet (4.6 m) Download Data Sheet
	PCR-620L Type: Mobile-ready mullion-mount proximity reader and keypad Read Range: Physical Credentials: Up to 4 inches (102 mm) Mobile Credentials: Up to 15 feet (4.6 m) Download Data Sheet
	PCR-640L Type: Mobile-ready single-gang wall switch box mount proximity reader and keypad Read Range: Physical Credentials: Up to 4 inches (102 mm) Mobile Credentials: Up to 15 feet (4.6 m) Download Data Sheet
	Conekt BLE/Proximity Readers are compatible with Pyramid Series Proximity® cards and tags.
